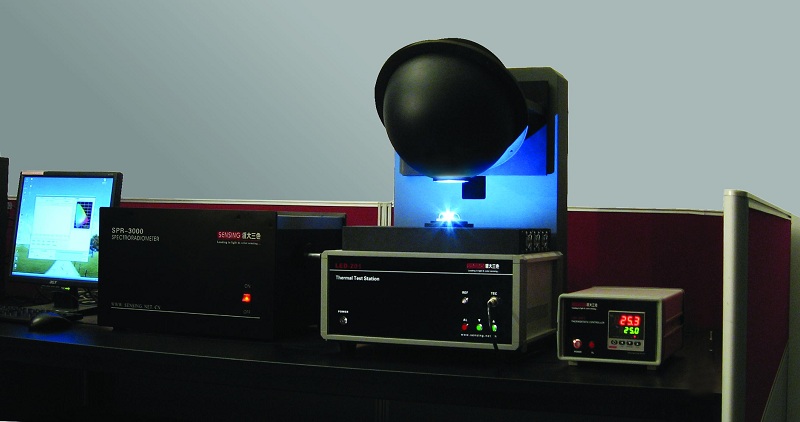

LED-201 Thermal Test Station

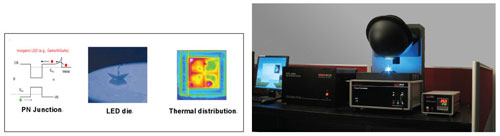

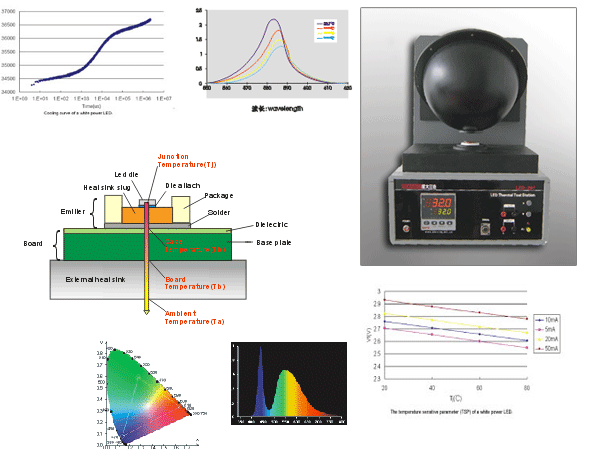

To determine junction temperature, thermal resistance under the stable and temporal conditions and luminous flux, radiant flux, spectrum distribution, peak wavelength, dominant wavelength, FWHM, electric parameters of LEDs operating at various of ambient temperature and forward current.
- Parameter
- Guide
Functions:To determine junction temperature, thermal resistance under the stable and temporal conditions and luminous flux, radiant flux, spectrum distribution, peak wavelength, dominant wavelength, FWHM, electric parameters of LEDs operating at various of ambient temperature and forward current.
Specifications:
>> Thermostatic temperature: 5 ?Cto 85?C
>> Temperature stability : 0.1?C
>> Operating Current: 1mA to 2000mA
>> Measuring Current: 1mA to 64mA
>> Forward Voltage: +5V, +15V (Optional)
>> Spectral range: 380nm to 1000nm
>> Sampling Speed: 1us to 10s
>> Integrating Sphere: Dia.300mm (up-down movable) ,2
geometry
