SPR-960 Spectrofluorimetric System
SPR-960 Spectrofluorimetric system is specialized to measure the 3D fluorescence spectrum, quantum efficiency, energy efficiency, luminous efficiency, fluorescence chromaticity of LED phosphors.
- Parameter
- Guide

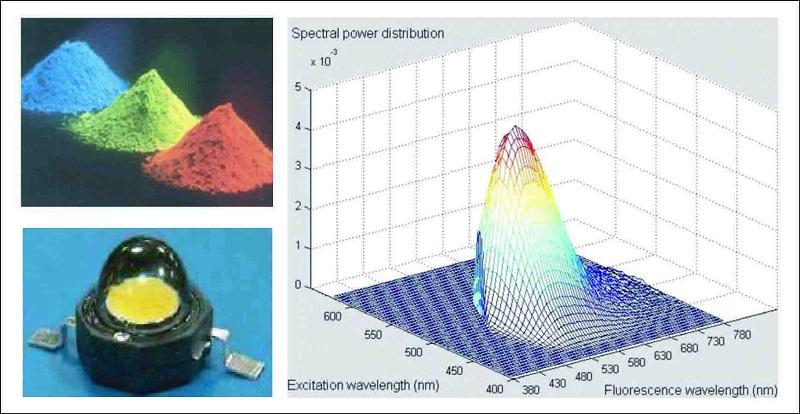

Function:SPR-960 Spectrofluorimetric system is specialized to measure the 3D fluorescence spectrum, quantum efficiency, energy efficiency, luminous efficiency, fluorescence chromaticity of LED phosphors. The phosphors can be excited by monochromatic light from 200nm to 800nm. With the information of 3D fluorescence spectrum, suitable phosphor materials and LED chip can be chosen to implement the best matching in luminous efficacy and color performance (Tc, Ra) for white LEDs.
Specifications:
>>Monochromatic excitation light: 350nm-800nm or 200nm-800nm (optional)
>>Dispersion: Double dispersion with C-T grating and filters.
>>Wavelength accuracy: 0.2nm
>>Spectral width: 0.1nm, 1.0nm, 5.0nm
>>Reference detector: UV-VIS PMT
>>Fluorescence Spectrum: 350nm-800nm or 200nm-800nm (optional)
