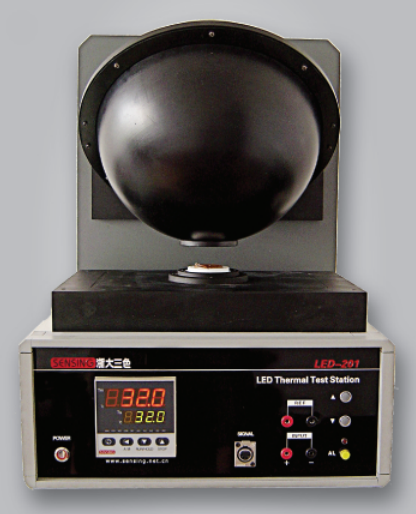

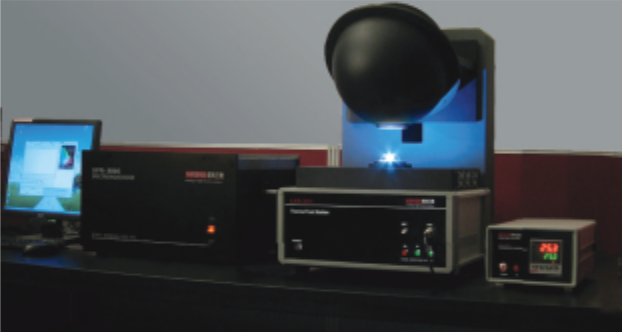

LED-201 Thermial Test Station

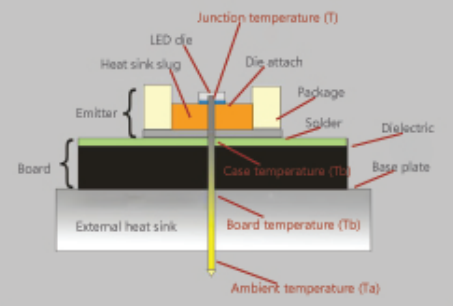

It intergrates the functions of measurement for optical parameters, electric parameters and thermal parameters. It can measure the junction tempreture, thermal resistance under the stable and temporal conditions and luminous flus, radiant flux, spectrum distribution, peak wavelength, dominant wavelength, FWHM, electric parameters of LEDs operating at various of ambient temperature and forward current.
- Parameter
- Guide
It intergrates the functions of measurement for optical parameters, electric parameters and thermal parameters. It can measure the junction tempreture, thermal resistance under the stable and temporal conditions and luminous flus, radiant flux, spectrum distribution, peak wavelength, dominant wavelength, FWHM, electric parameters of LEDs operating at various of ambient temperature and forward current.
Specifications:
- Thermostatic temperature:5℃~85℃;
- Temperature stability:0.1℃;
- Operating current:1mA~2000mA;
- Measuring current:1mA~64mA;
- Forward voltage:+5V,+15V;
- Spectral range:380nm~1000nm
- Integrating sphere:φ300mm, 2π geometry.
